Quick Overview
GVWR
14,900 lbs
LENGTH
16 – 22 ft
PULL TYPE
Bumper Pull / Gooseneck
BASE MSRP
$11,012*
*contact dealer for current pricing
HYDRAULIC GRAVITY TILT EQUIPMENT 14K TRAILER

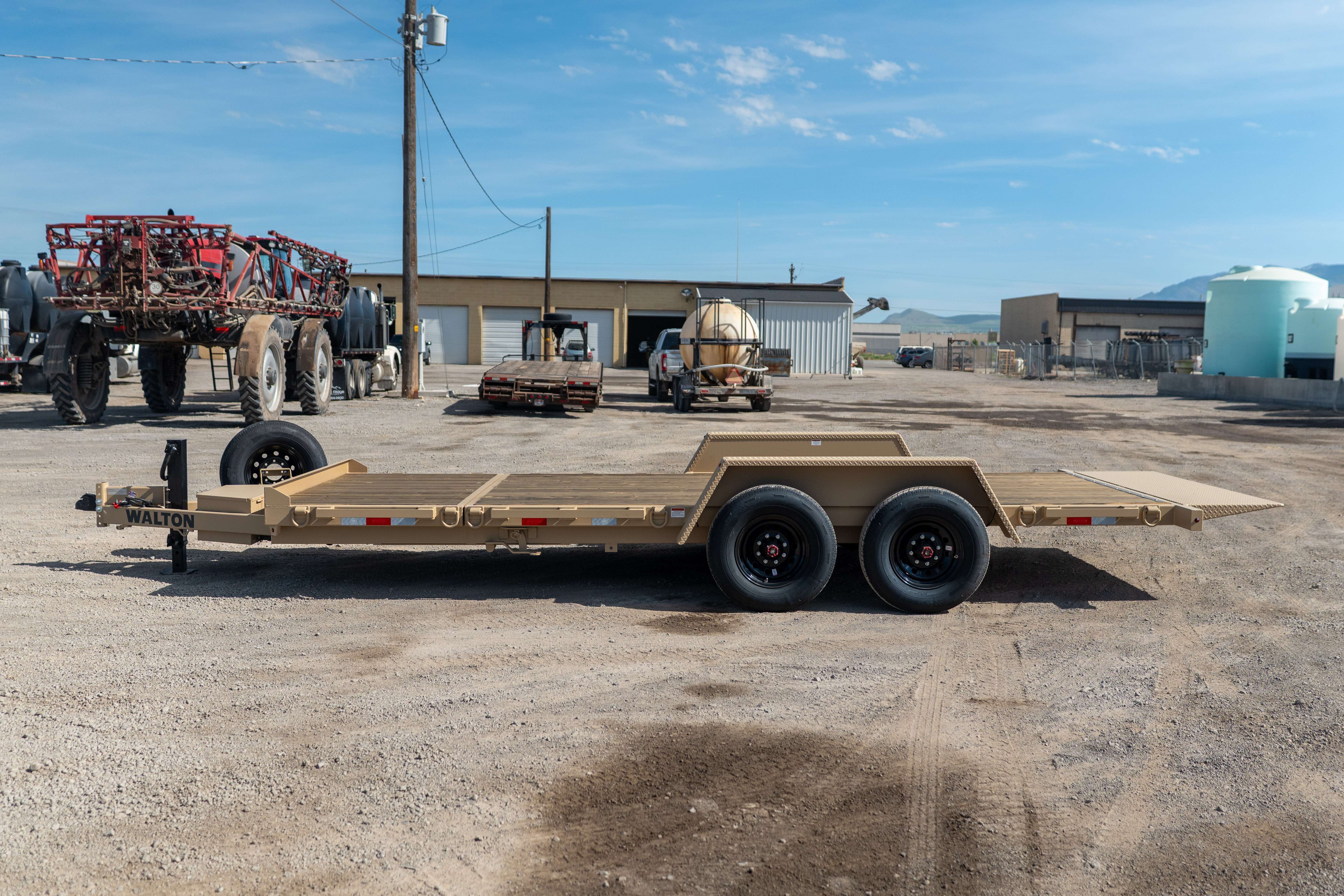

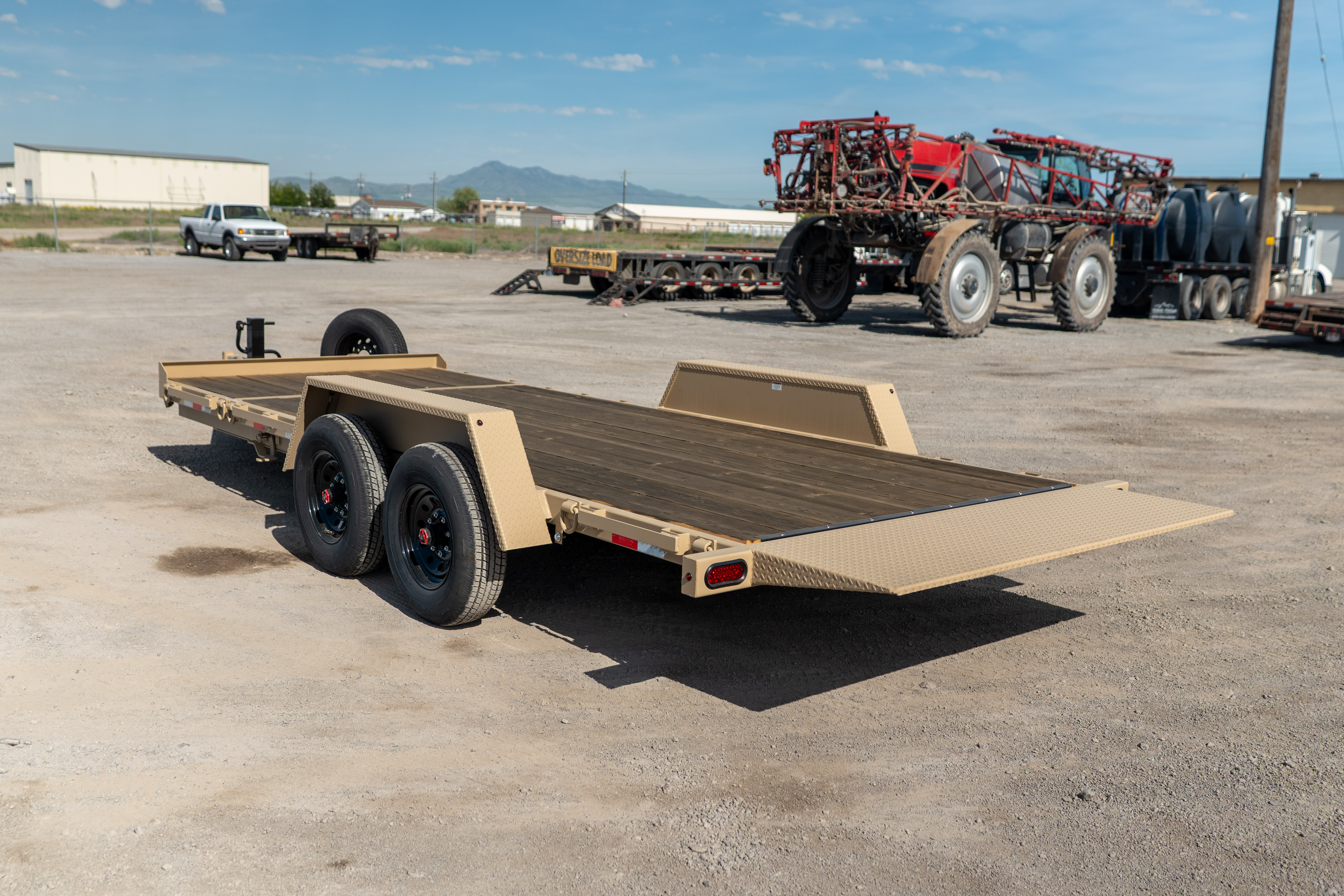

The TSX207 Tilt Deck Equipment Trailer eliminates the need for ramps entirely. Its full-tilt deck lowers to ground level for fast, easy loading of skid steers, mini excavators, and heavy machinery — then locks solid for transport.
| Frame & Suspension | |
| Axles | Dexter Torflex E-Z Lube — GAWR 7,000 (2) |
| Frame | 2" × 5" × 1/4" Tube Main Frame |
| Cross Members | 2.5" × 3/16" Angle on 16" centers |
| Coupler | 2 5/16" Adjustable (bumper or gooseneck) |
| Jacks | 12K Drop Leg Jack (Bolt On) |
| Brakes | Electric Self-Adjusting |
| Tires & Deck | |
| Standard Tires | ST235/80R16 "E" 10 Ply, 8 Lug, 16" Black |
| Upgrade Tires | ST235/85R16 "G" 14 Ply, 8 Lug, 16" Black (+$665) |
| Deck Material | 2" × 10" Oil Treated Lumber |
| Finish | Black Powder Coat |
Limited Lifetime Structural Warranty on frame. Third-party components carry manufacturer warranty.
